As solid-state battery technology continues to advance, sulfide solid-state electrolytes have emerged as a key technical pathway within the solid-state battery materials system, thanks to their high ionic conductivity and excellent interfacial compatibility.
However, transitioning sulfide solid-state electrolytes from laboratory R&D to large-scale production is not simply a matter of scaling up laboratory equipment; rather, it requires systematic optimization involving the production environment, equipment design, and process control based on the material’s characteristics.
In actual production, the manufacturing of sulfide solid-state electrolytes faces several major challenges: sensitivity to moisture and oxygen, which requiring strict production environment requirements; a tendency for agglomeration during powder processing, which affects material uniformity; Corrosion risks and exhaust treatment requirements associated with sulfur-containing materials;; and the difficulty of seamlessly integrating multiple process steps.
Therefore, establishing a stable production line for sulfide solid-state electrolytes requires comprehensive planning—from process design and equipment selection to system integration.

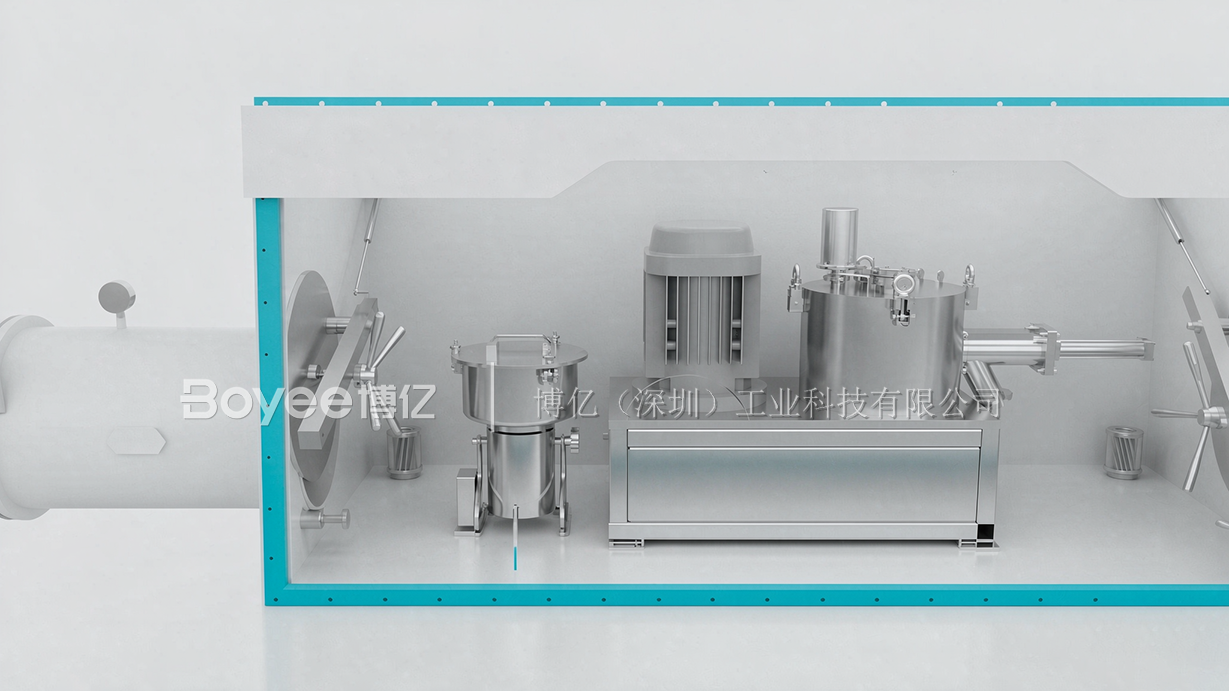

1. A low-dew-point, moisture-controlled, and oxygen-free environment ensures the stable preparation of materials
Sulfide solid-state electrolyte materials are highly sensitive to moisture and oxygen exposure during the production process. Contact with air can trigger undesirable reactions and negatively affect material properties. To address this issue, a stable environmental control system must be established for sulfide solid-state electrolyte production lines:
1) Production environment control with a low dew point
2) Inert gas protection system
3) Fully enclosed material conveying
4) Isolation and protection of critical processes
By precisely controlling moisture and oxygen levels in the production environment, the risk of material exposure can be reduced, improving process stability. Boyee’s sulfide solid-state electrolyte production line solution employs a sealed, moisture-controlled , and oxygen-free design to provide a stable production environment for critical stages such as powder processing, sintering, material conveying , and packaging.
2. End-to-End Process Design to Ensure Consistent Powder Production
The production of sulfide solid-state electrolytes involves multiple key processes, and each stage must be precisely coordinated to ensure consistent material quality. Boyee’s sulfide solid-state electrolyte production line covers the entire process flow:
Raw material pretreatment → Batching and mixing → Sintering → Wet grinding → Vacuum filtration (solvent recovery) → Drying → Air-jet milling → Screening/packaging.
Each process step plays a specific role in achieving high-quality electrolyte powder production: Raw material pretreatment and mixing improve material uniformity and ensure accurate composition control; Sintering promotes the required material phase transformation and structural formation; Wet grinding reduces particle size and improves powder dispersion; Air jet milling further optimizes particle size distribution and powder characteristics; Screening and packaging ensure final product consistency and stable quality.
Through integrated process design and precise coordination between each production stage, BOYEE enables continuous manufacturing from raw material preparation to final sulfide solid-state electrolyte powder production.

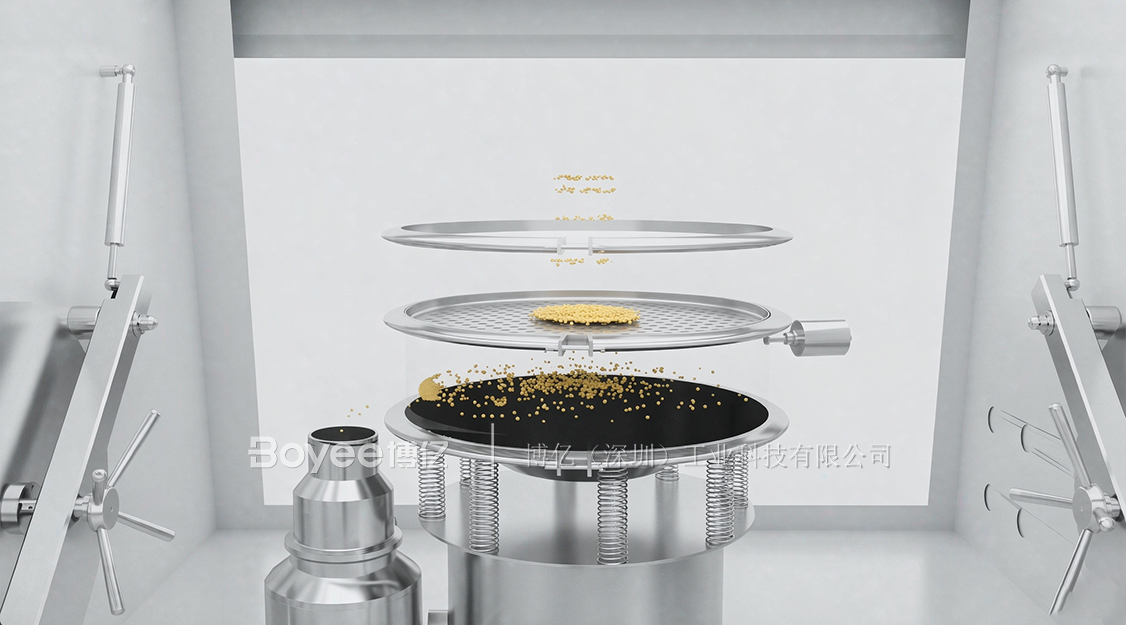

3. Powder Dispersion and Grinding: Solving the Problem of Particle Agglomeration
During sulfide solid-state electrolyte processing, powder agglomeration can significantly affect material uniformity, processing performance, and final battery performance.

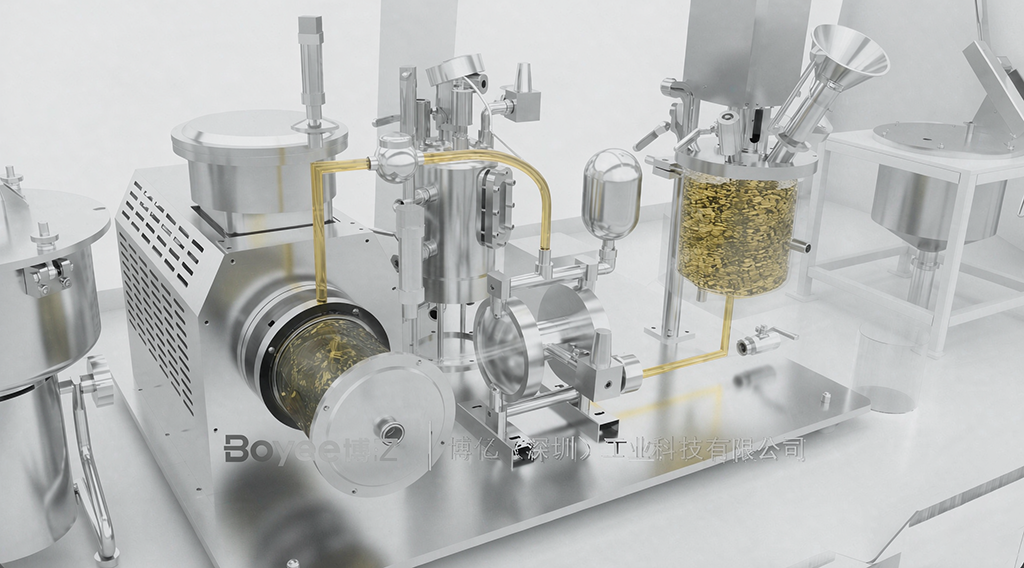

To overcome this challenge, the manufacturing process requires a combination of: High-efficiency wet grinding technologies; Precise dispersion control; Optimized process parameters.
Through controlled mechanical forces, agglomerated particles are effectively reduced and dispersed, resulting in a more uniform particle size distribution.
By optimizing grinding and dispersion processes, Boyee improves powder processing efficiency and helps customers achieve the high uniformity and stability requirements demanded by advanced solid-state electrolyte materials.
4. Corrosion-Resistant Equipment Design for Enhanced Long-Term Production Reliability
During sulfide solid-state electrolyte manufacturing, sulfur-containing volatile compounds may be generated, creating higher requirements for equipment material selection and structural design.
To ensure reliable long-term operation, sulfide electrolyte processing equipment must be optimized for these specific operating conditions, including:
· Corrosion-resistant materials for product-contact components;
· Protective surface coatings for critical areas;
· Optimized equipment structures for improved durability.
Through advanced material selection and engineering optimization, Boyee enhances equipment reliability, reduces maintenance requirements, and supports stable long-term operation of sulfide solid-state electrolyte production lines.
5. Exhaust Treatment System Suppoting Sustainable Manufacturing
Exhaust treatment is a critical component of sulfide solid-state electrolyte production line construction.
Boyee provides integrated exhaust treatment solutions combining: Spray pre-treatment + Activated carbon adsorption
The system removes soluble sulfur-containing compounds through spray washing and subsequently captures residual volatile components through activated carbon adsorption, enabling multi-stage exhaust purification.
By integrating environmental protection systems with production equipment, Boyee helps customers achieve safer, cleaner, and more sustainable sulfide solid-state electrolyte manufacturing.

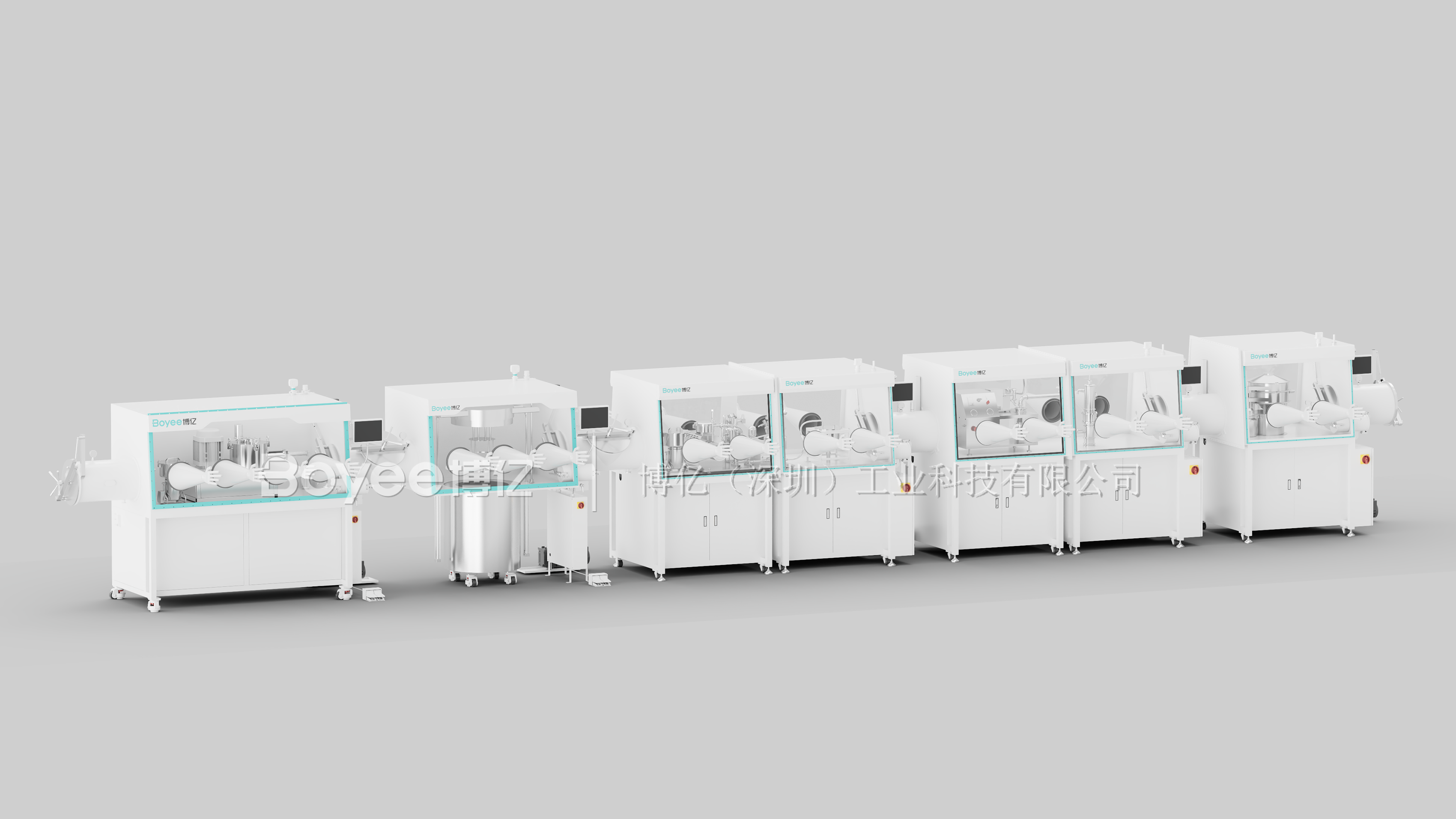

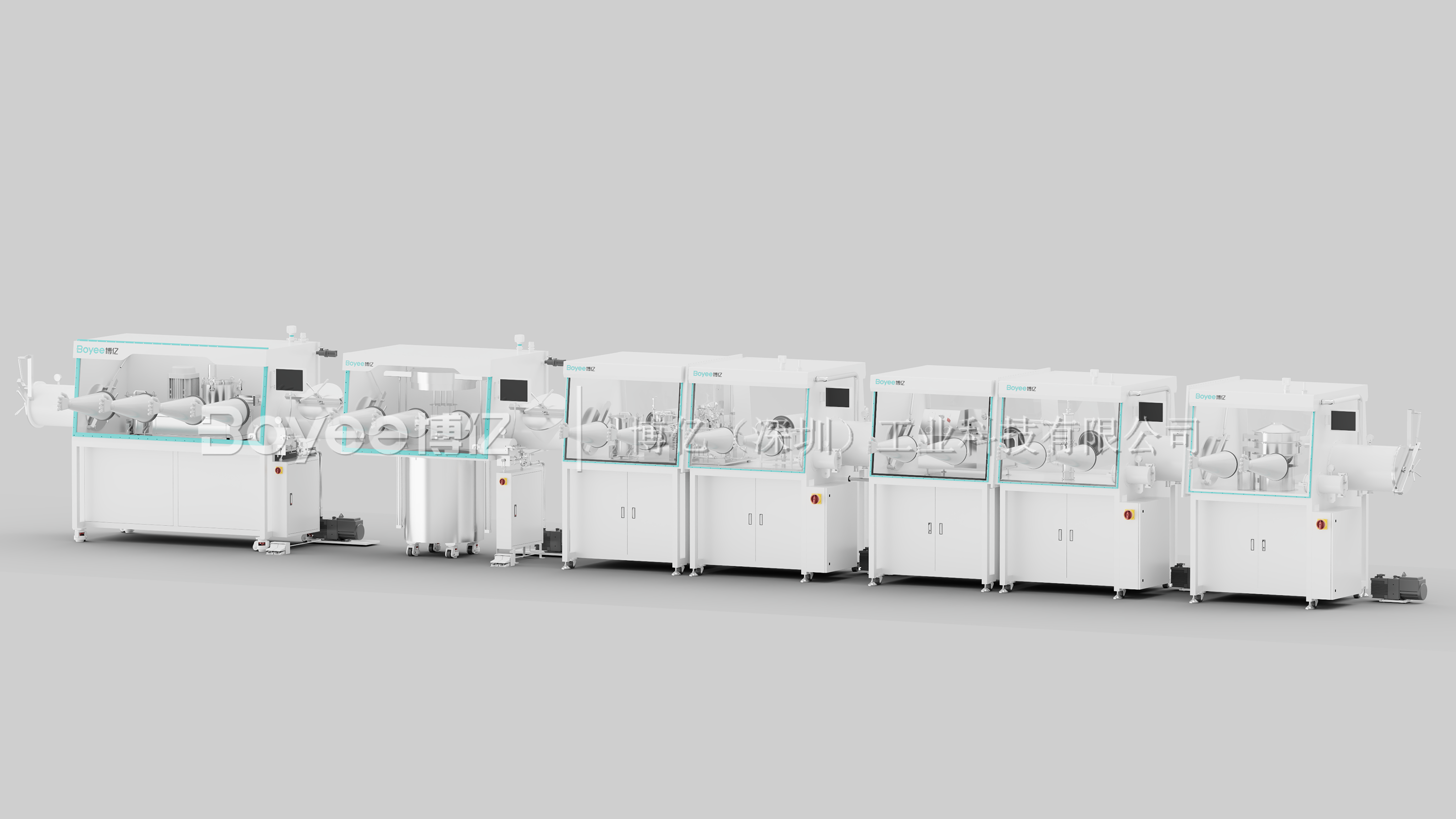

Focusing on the industrialization requirements of solid-state battery materials, Boyee provides complete turnkey solutions covering: Process design + Core equipment manufacturing + System integration + Installation and commissioning + EPC project delivery
From laboratory validation and pilot-scale development to large-scale manufacturing, Boyee continuously strengthens its capabilities in sulfide solid-state electrolyte production line engineering, providing customers with reliable, efficient, and scalable equipment solutions for next-generation solid-state battery materials.
